.010 Air Bubble Jet

Product Range Spray Nozzles .010 Air Bubble Jet
010 Billericay Air Bubble Jet

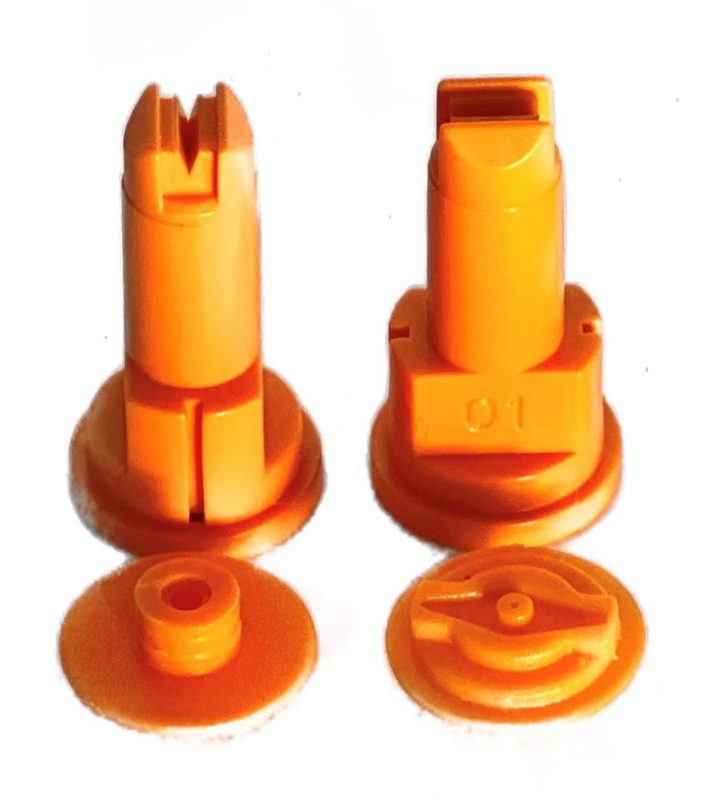

010 Billericay Air Bubble JetNozzle-Orange.jpg
$9.00
Qty

.010 Billericay Farm Services Air Bubble Jet is the best choice for all year round spraying. Producing a condensed droplet spectrum to reduce drift and enhance chemical uptake.

Reduce pressure to produce coarse to very coarse droplets, increase pressure to produce a more medium droplet

Fits in a Standard 8mm Nozzle Cap or the Billericay color coded cap also available.

Please refer to the nozzle calculator at http://www.bfs.uk.com/ for full nozzle output and droplet data.

Please email at ENQUIRE NOW if you require output data at 30 or 40 cm nozzle spacing



2 Bar, 368um Very Coarse Droplet

2.5 Bar, 324um Very Coarse Droplet

3 Bar, 302um Coarse Droplet

4 Bar, 263um Coarse Droplet

5 Bar, 244um Coarse Droplet

6 Bar, 225um Medium Droplet

7 Bar, 212um Medium Droplet

Nozzle Flow 16 18 20 22 24 26 28 30 SPEED
Pressure L/min Output in Litres per hectare at 50cm spacings
2 bar 0.33 24 22 20 18 16 15 14 13
2.5 bar 0.37 27 24 22 20 18 17 16 15
3 bar 0.4 30 27 24 22 20 18 17 16
3.5 bar 0.43 35 29 26 24 22 20 19 17
4 bar 0.46 35 31 28 25 23 22 20 18
4.5 bar 0.49 37 33 29 27 24 23 21 20
5 bar 0.52 39 34 31 28 26 24 22 21
5.5 bar 0.54 41 36 32 30 27 25 23 22
6 bar 0.57 42 38 34 31 28 26 24 23
6.5 bar 0.59 44 39 35 32 29 27 25 24
7 bar 0.61 46 41 37 33 31 28 26 24
