.015 Air Bubble Jet

Product Range Spray Nozzles .015 Air Bubble Jet
015 Billericay Air Bubble Jet
$9.00
Qty

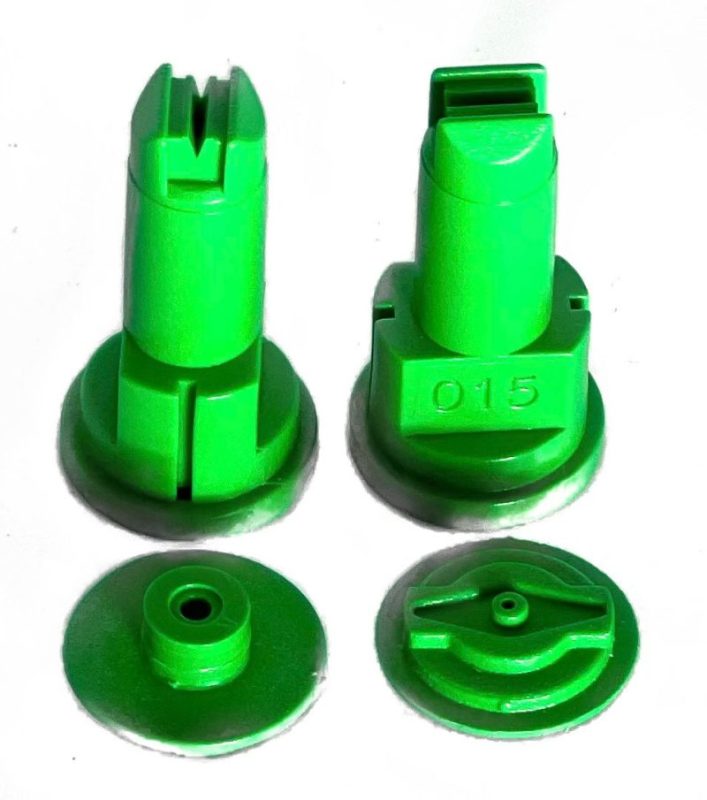

.015 Billericay Farm Services Air Bubble Jet is the best choice for all year round spraying. Producing a condensed droplet spectrum to reduce drift and enhance chemical uptake.

Reduce pressure to produce coarse to very coarse droplets, increase pressure to produce a more medium droplet

Fits in a Standard 8mm Nozzle Cap or the Billericay color coded cap is also available.

Please refer to the nozzle calculator at http://www.bfs.uk.com/ for full nozzle output and droplet data.

Please email at ENQUIRE NOW if you require output data at 30 or 40 cm nozzle spacing

2 Bar, 391um Extremely Coarse Droplet

2.5 Bar, 361um Very Coarse Droplet

3 Bar, 335um Very Coarse Droplet

4 Bar, 301um Coarse Droplet

5 Bar, 277um Coarse Droplet

6 Bar, 259um Coarse Droplet

7 Bar, 243um Coarse Droplet

Nozzle Flow 16 18 20 22 24 26 28 30 SPEED
Pressure L/min Output in Litres per hectare at 50cm spacing
2 bar 0.49 37 33 29 27 24 23 21 20
2.5 bar 0.55 41 37 33 30 27 25 23 22
3 bar 0.6 45 40 36 33 30 28 26 24
3.5 bar 0.65 49 43 39 35 32 30 28 26
4 bar 0.69 52 46 42 38 35 32 30 28
4.5 bar 0.73 55 49 44 40 37 34 31 29
5 bar 0.77 58 52 46 42 39 36 33 31
5.5 bar 0.81 61 54 49 44 41 37 35 32
6 bar 0.85 64 57 51 46 42 39 36 34
6.5 bar 0.88 66 59 53 48 44 41 38 35
7 bar 0.92 69 61 55 50 46 42 39 37
