.020 Air Bubble Jet

Product Range Spray Nozzles .020 Air Bubble Jet
020 Billericay Air Bubble Jet
$9.00
Qty

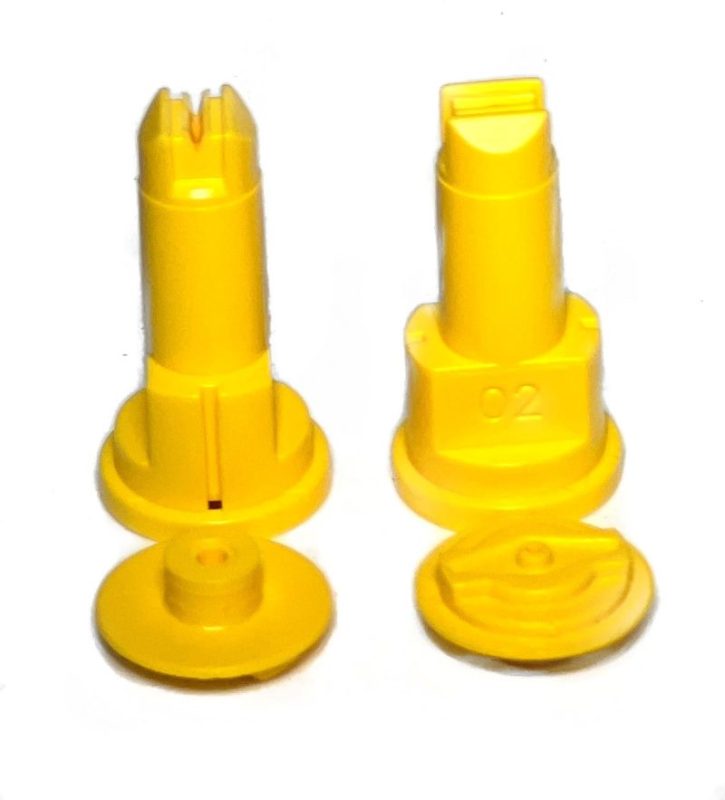

.020 Billericay Farm Services Air Bubble Jet is the best choice for all year round spraying. Producing a condensed droplet spectrum to reduce drift and enhance chemical uptake.

Reduce pressure to produce coarse to very coarse droplets, increase pressure to produce a more medium droplet

Fits in a Standard 8mm Nozzle Cap or the Billericay color coded cap is also available.

Please refer to the nozzle calculator at http://www.bfs.uk.com/ for full nozzle output and droplet data.

Please email at ENQUIRE NOW if you require output data at 30 or 40 cm nozzle spacing

2 Bar, 391um Coarse Droplet

2.5 Bar, 283um Coarse Droplet

3 Bar, 260um Coarse Droplet

4 Bar, 231um Coarse Droplet

5 Bar, 211um Medium Droplet

6 Bar, 194um Medium Droplet

7 Bar, 182um Medium Droplet



Nozzle Flow 16 18 20 22 24 26 28 30 SPEED KMH
Pressure L/min Output in Litres per hectare at 50cm spacing
2 bar 0.66 49 44 40 36 33 30 28 26
2.5 bar 0.74 55 49 44 40 37 34 32 30
3 bar 0.81 61 54 49 44 40 37 35 32
3.5 bar 0.87 65 58 52 48 44 40 37 35
4 bar 0.93 70 62 56 51 47 43 40 37
4.5 bar 0.99 75 66 59 54 50 46 42 40
5 bar 1.03 77 69 62 56 52 48 44 41
5.5 bar 1.08 81 72 65 59 54 50 46 43
6 bar 1.13 85 75 68 62 57 52 48 45
6.5 bar 1.18 88 79 71 64 59 54 50 47
7 bar 1.22 92 81 73 67 61 56 52 49
