050 Air Bubble Jet

Product Range Spray Nozzles 050 Air Bubble Jet
050 Billericay Air Bubble Jet
$9.00
Qty

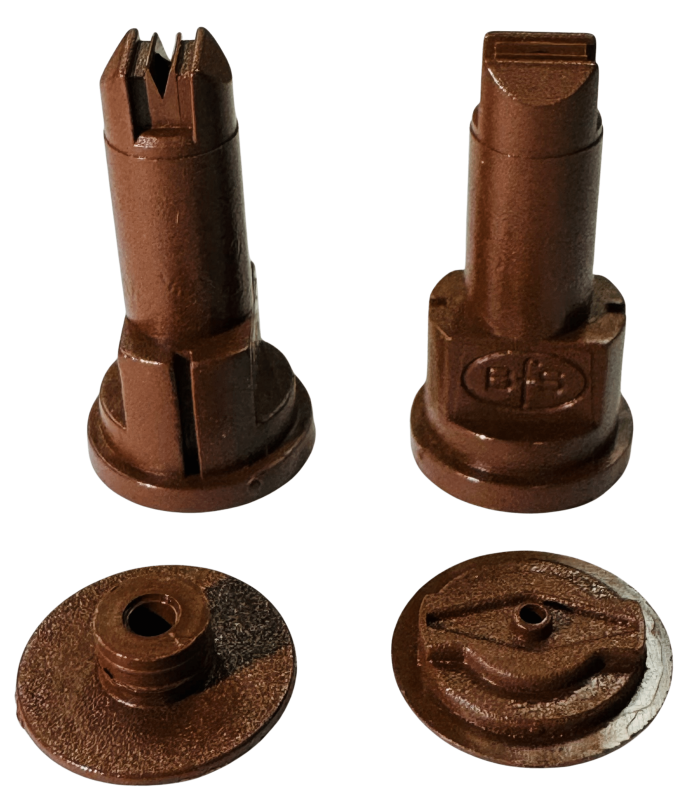

.050 Billericay Farm Services Air Bubble Jet is the best choice for all year round spraying. Producing a condensed droplet spectrum to reduce drift and enhance chemical uptake.

Reduce pressure to produce coarse to very coarse droplets, increase pressure to produce a medium droplet

Fits in a Standard 8mm Nozzle Cap.

Please refer to the nozzle calculator on http://www.bfs.uk.com/ for full nozzle output and droplet data.

please email if you require output data at 30 or 40 cm nozzle spacing

Nozzle Flow 16 18 20 22 24 26 28 30 SPEED KMH
Pressure L/min Output in Litres per hectare at 50cm spacing
2 bar 1.63 122 109 98 89 82 75 70 65
2.5 bar 1.83 137 121 109 99 91 84 78 73
3 bar 2 150 133 120 109 100 92 86 80
3.5 bar 2.16 162 144 129 118 108 100 92 86
4 bar 2.31 173 154 138 126 115 106 99 92
4.5 bar 2.45 183 163 147 133 12 113 105 98
5 bar 2.58 194 172 155 141 129 119 111 103
5.5 bar 2.71 203 181 162 148 135 125 116 108
6 bar 2.83 212 189 170 154 141 131 121 113
6.5 bar 2.94 221 196 177 161 147 136 126 118
7 bar 3.06 229 204 183 167 153 141 131 122
