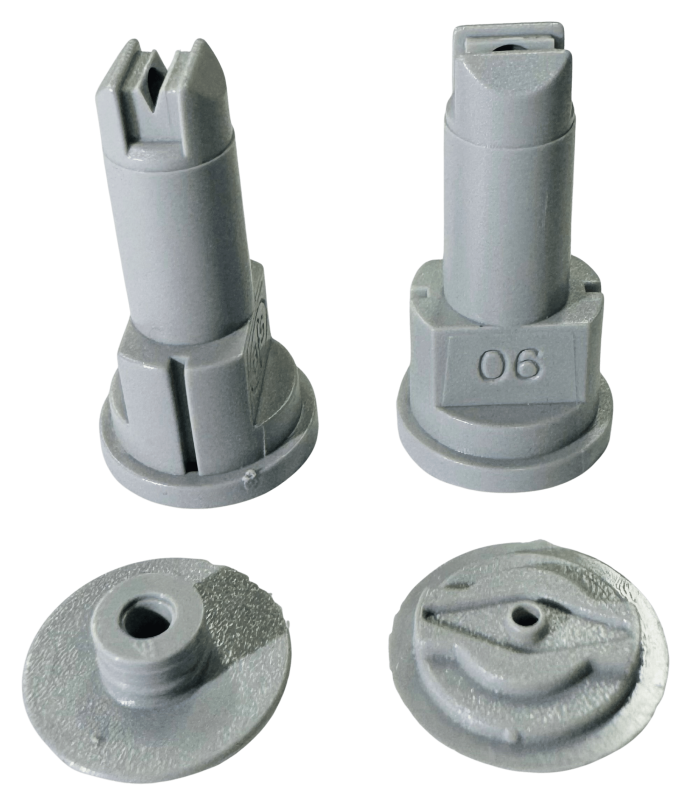

060 Air Bubble Jet

Product Range Spray Nozzles 060 Air Bubble Jet
060 Billericay Air Bubble Jet
$9.00
Qty

.060 Billericay Farm Services Air Bubble Jet is the best choice for all year round spraying. Producing a condensed droplet spectrum to reduce drift and enhance chemical uptake.

Reduce pressure to produce coarse to very coarse droplets, increase pressure to produce a medium droplet

Fits in a Standard 8mm Nozzle Cap.

Please refer to the nozzle calculator on http://www.bfs.uk.com/ for full nozzle output and droplet data.

please email if you require output data at 30 or 40 cm nozzle spacing

Nozzle Flow 16 18 20 22 24 26 28 30 SPEED KMH
Pressure L/min Output in Litres per hectare at 50cm spacing
2 bar 1.96 147 131 118 107 98 90 84 78
2.5 bar 2.19 164 146 131 120 110 101 94 88
3 bar 2.4 180 160 144 131 120 111 103 96
3.5 bar 2.59 194 173 156 141 130 120 111 104
4 bar 2.77 208 185 166 151 139 128 119 111
4.5 bar 2.94 220 196 176 160 147 136 126 118
5 bar 3.10 232 207 186 169 155 143 133 124
5.5 bar 3.25 244 217 195 177 162 150 139 130
6 bar 3.39 255 226 204 185 170 157 145 136
6.5 bar 3.53 265 236 212 193 177 163 151 141
7 bar 3.67 275 244 220 200 183 169 157 147
