015 Pulzar ABJ Spray Nozzle Code; 10015Pul

Product Range Spray Nozzles 015 Pulzar ABJ Spray Nozzle Code; 10015Pul

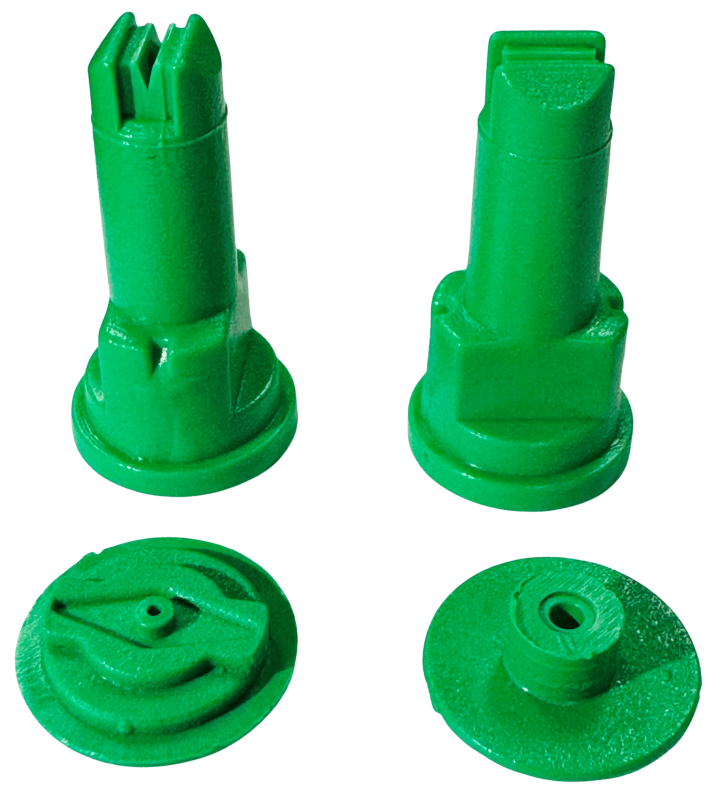

Billericay Pulzar 015 Air Bubble Jet
Billericay Pulzar 015 Air Bubble Jet015 Pulzar tt015 Pulzar top015 Pulzar st015 Pulzar side
$9.00
Qty

Research in Canada and the UK has shown that by blocking the air intake holes on the Billericay Air Bubble Jet results in a nozzle well suited to replacing worn nozzles on sprayers utilizing the Pulse Width Modulation System.
The droplet spectrum with these nozzles is very condense with very few large droplets and or fine droplets being produced resulting in a better quality spray pattern being produced to enhance chemical uptake and to reduce drift.
These nozzles fit in the standard T-Jet cap.

Nozzle Pressure      Speed KPH @ 50cm
Bar L/Min 16  18  20   22  24  26  28  30 Application Rate
Green    2     0.49     37  33  29  25  24  23  21   19
0.015    2.5   0.55    41    37  33  30  28  26  24  22
Green   3      0.6      45   40  36  33  30  28  26  24
Green   3.5   0.65   49   43  39  35   33  30  28  26
Green   4     0.69    52   46  42  38  35   32  30  28
Green   4.5   0.73    55  49  44  40  37   34  32  30
Green    5      0.77    59  52  46  42  39   36  34  32
