030 Pulzar ABJ Spray Nozzle Code; 10030Pul

Product Range Spray Nozzles 030 Pulzar ABJ Spray Nozzle Code; 10030Pul

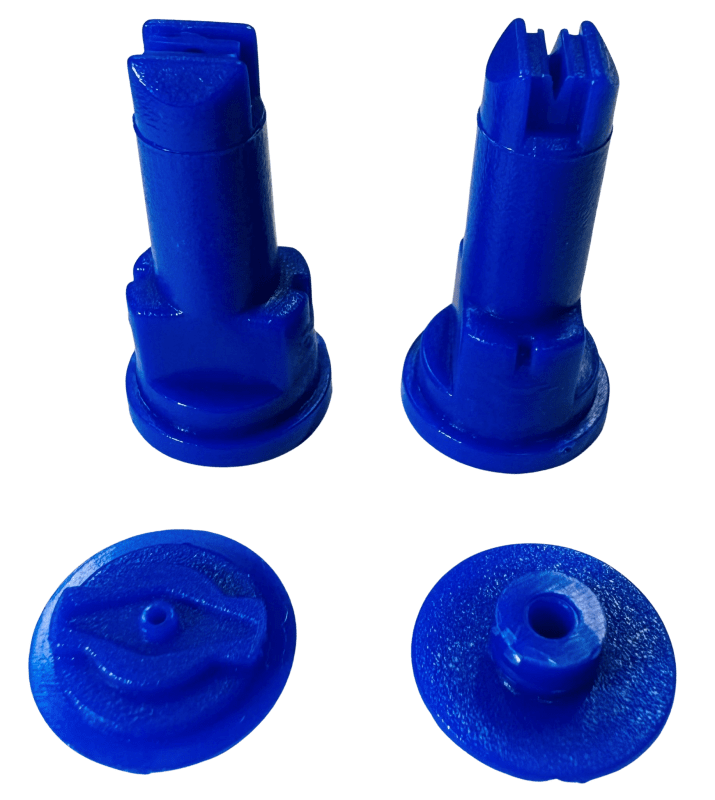

Billericay Pulzar 030 Air Bubble Jet
Billericay Pulzar 030 Air Bubble Jet030 Pulzar top030 Pulzar sid030 Pulzar si
$9.00
Qty

030 Blue Size
Research in Canada and the UK has shown that by blocking the air intake holes on the Billericay Air Bubble Jet results in a nozzle well suited to replacing worn nozzles on sprayers utilizing the Pulse Width Modulation System.
The droplet spectrum with these nozzles is very condense with very few large droplets and or fine droplets being produced resulting in a better quality spray pattern being produced to enhance chemical uptake and to reduce drift.
These nozzles fit in the standard T-Jet cap

Nozzle   Pressure              Speed KPH @ 50cm
Bar L/Min          16  18  20  22  24  26  28  30
Blue       2     0.98             74  65  59  53  49  45  42  39
030        2.5  1.1 82          84   73  66  60  55  51  47  44
Blue       3     1.2               90  80  72  65  60  56  52  48
Blue       3.5  1.3               97  86  78  71   65  60  56  52
Blue       4     1.39           104  92  83  76  70  64  60  56
Blue       4.5  1.47           110  98  88  80  74  68  63  59
Blue       5     1.55            115 104 93  84  78   72  67  63
